Controllers

Advanced electronics to control SENSYSTEM and SENSOPTIC VISION

Technology

Designed to run your automatic systems smoothly

Sensoptic electronic units serve to run fault detection systems from a Windows-based personal computer.

f

 They include hardware for data acquisition, input connections to communicate with Profile Sensors and output connections to computers.

Features
R

Up to 32 single-axis sensors

R

Ultra-fast data acquisition

R

Integrated linear power supply

R

Digital inputs and outputs

R

Output USB or PCI connection

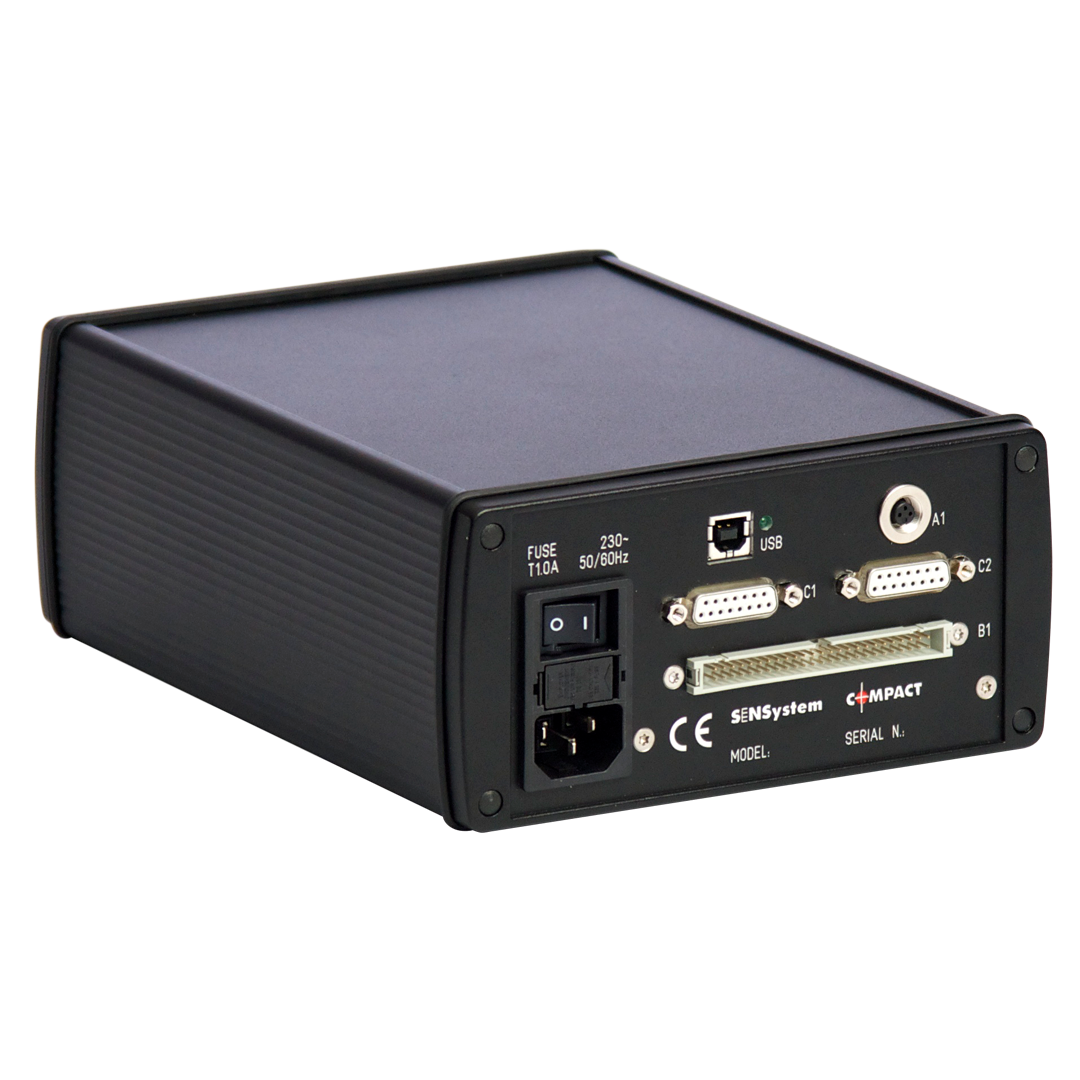

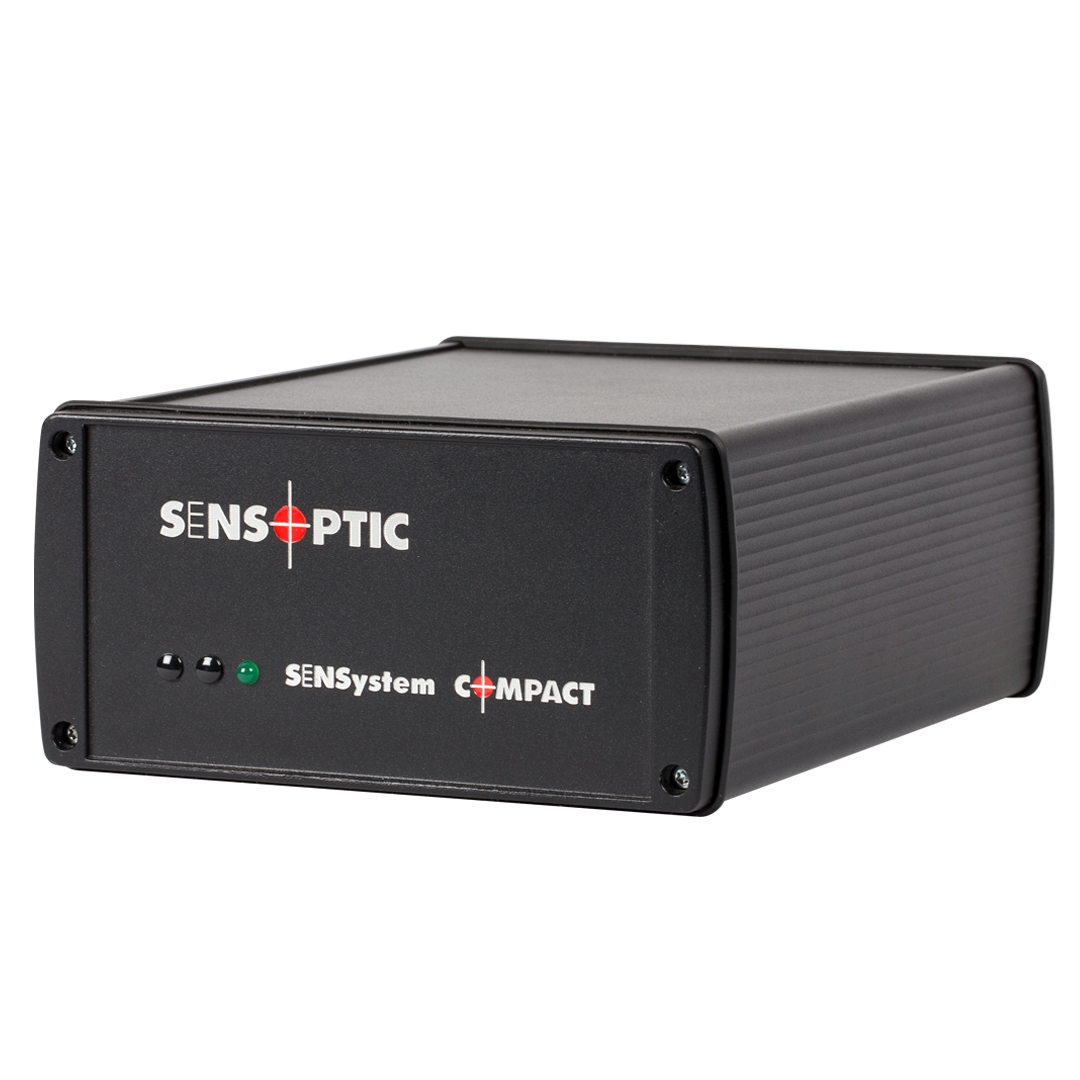

COMPACT

CONTROLLER FOR PORTABLE SYSTEMS

Range: up to 4 single-axis or 2 dual-axis Profile Sensors

COMPACT controllers are best suited for light-weight portable systems for off-line sample inspection in laboratory and quality control environments.

The COMPACT Electronic Unit is used in:

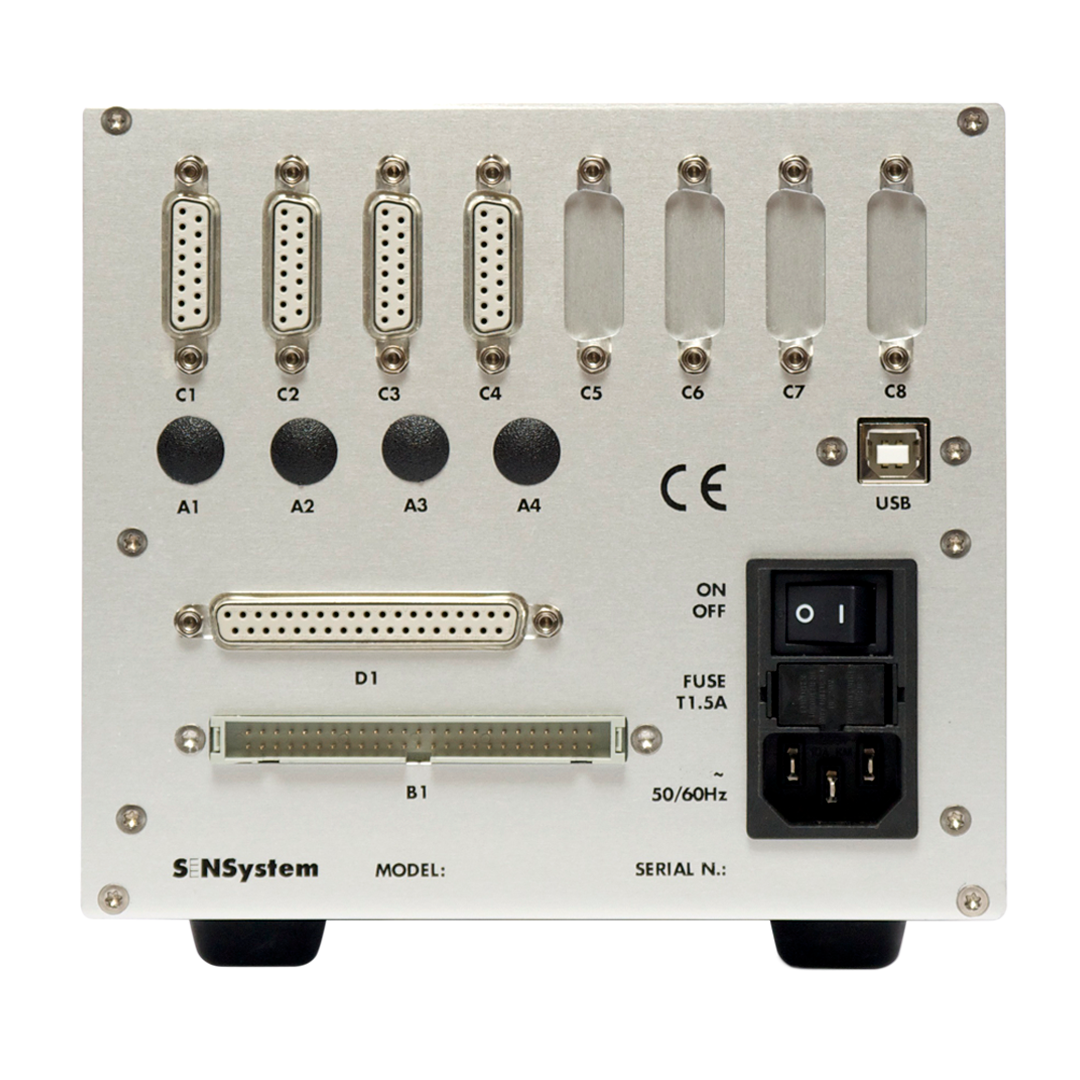

STANDARD

CONTROLLER FOR MACHINE INTEGRATION


Range:
up to 8 single-axis or 4 dual-axis Profile Sensors

STANDARD controllers are usually integrated in multiline manufacturing processes to run multiple Profile Sensors. They include 16 digital inputs and outputs.

The STANDARD Electronic Unit is used in:

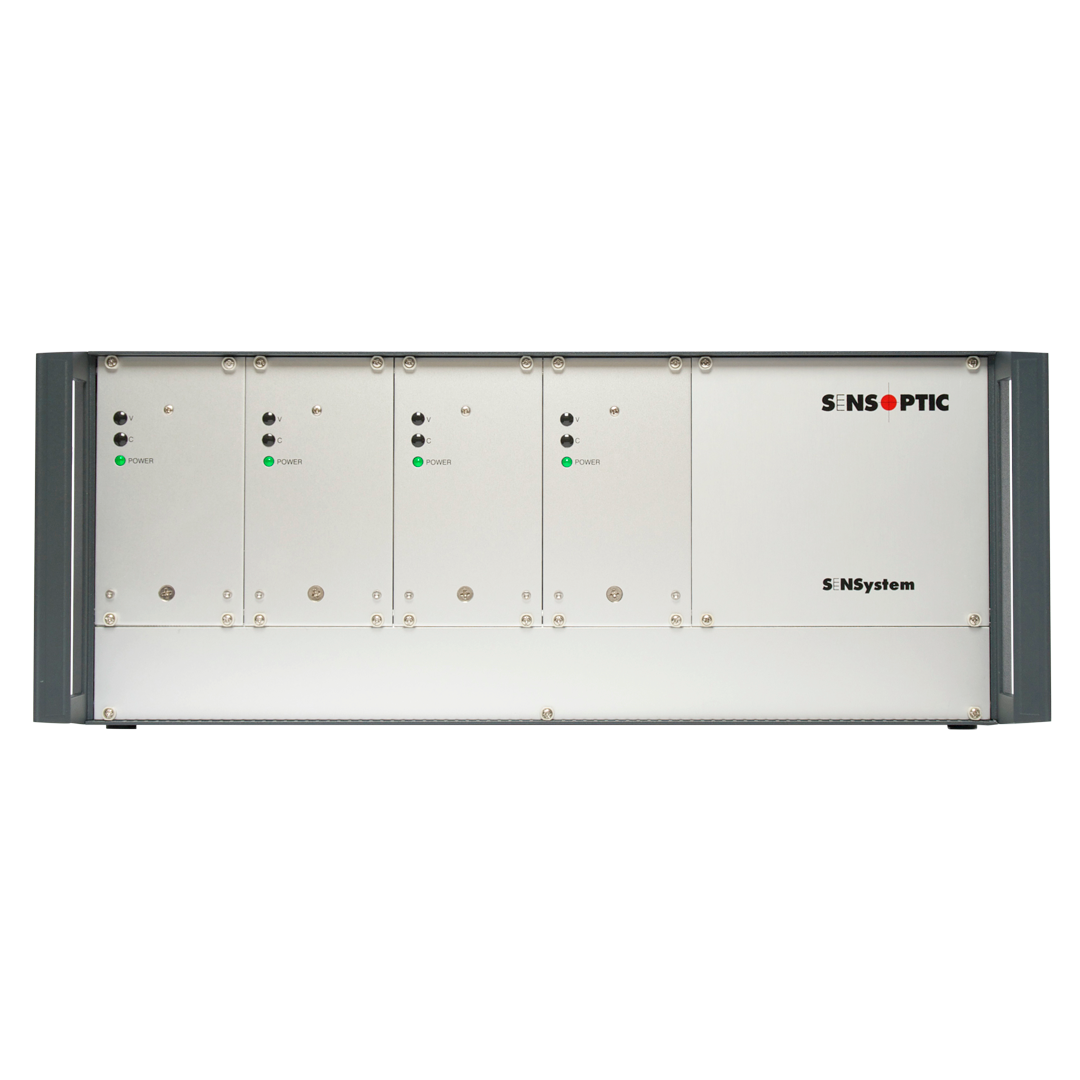

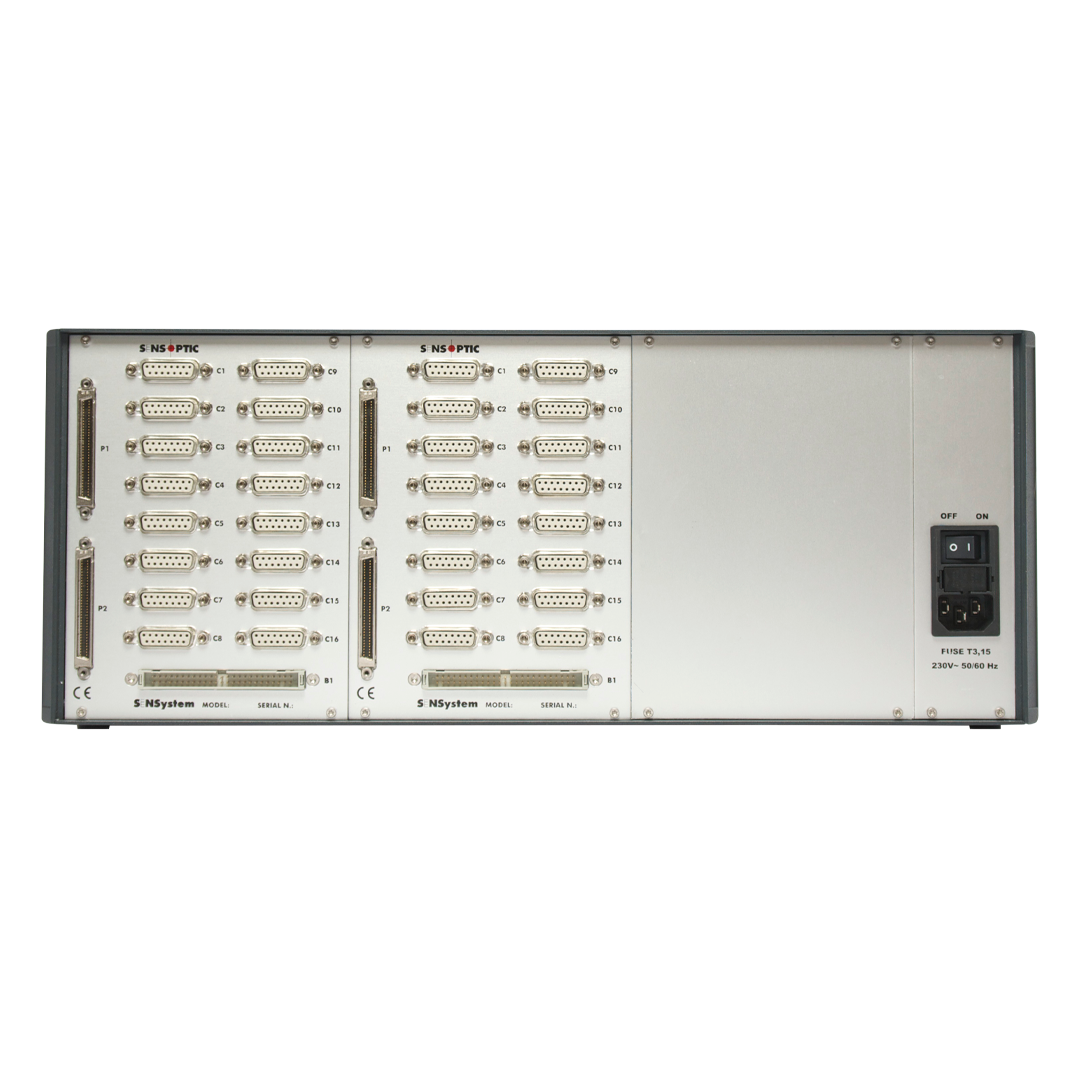

PROCESS

CONTROLLER FOR MULTILINE PRODUCTION MACHINES


Range:
up to 32 single-axis or 16 dual-axis Profile Sensors

PROCESS controllers are installed in large production plants to control the quality of multiple lines. They are supplied in configurations specially designed to customers requirements.

The PROCESS Electronic Unit is used in:

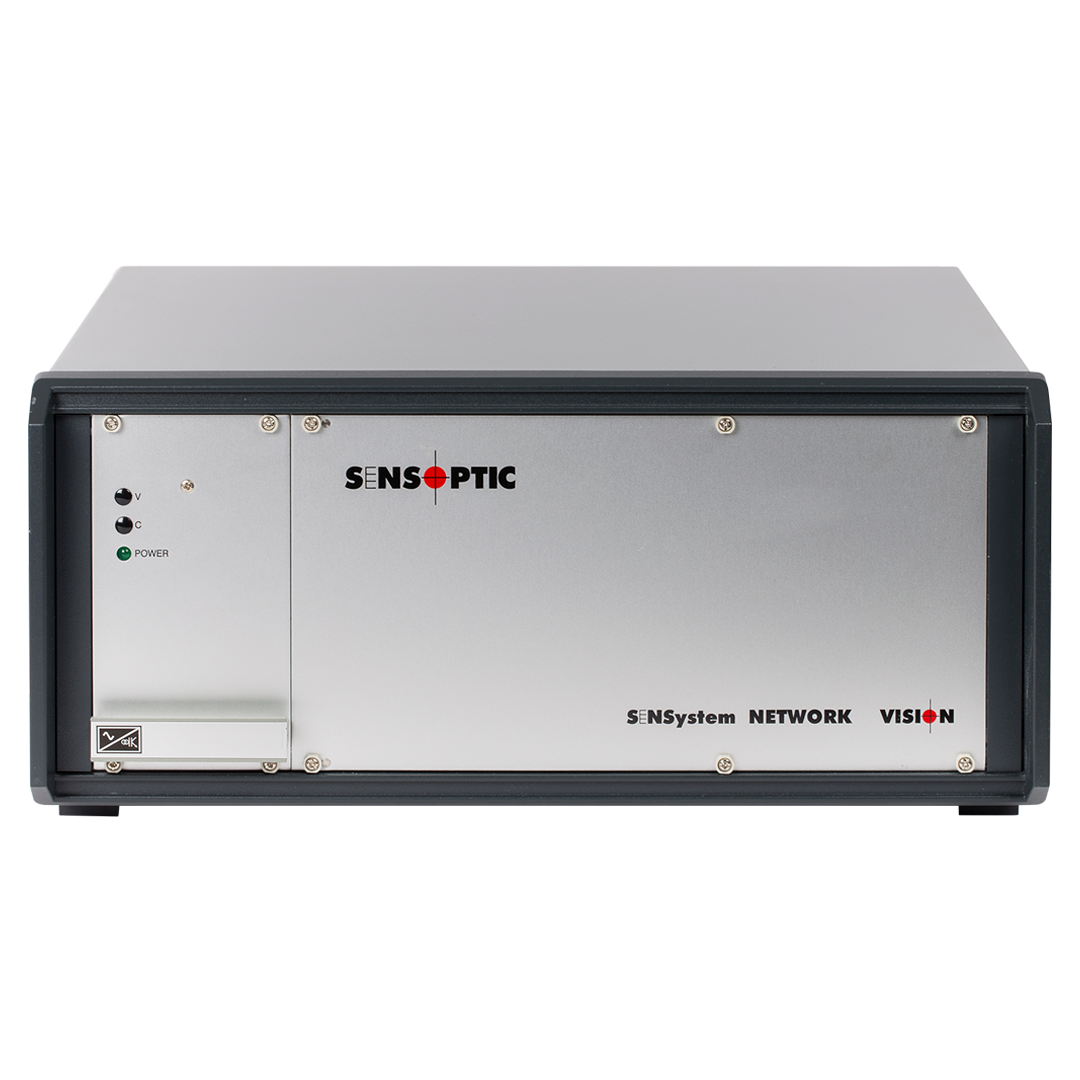

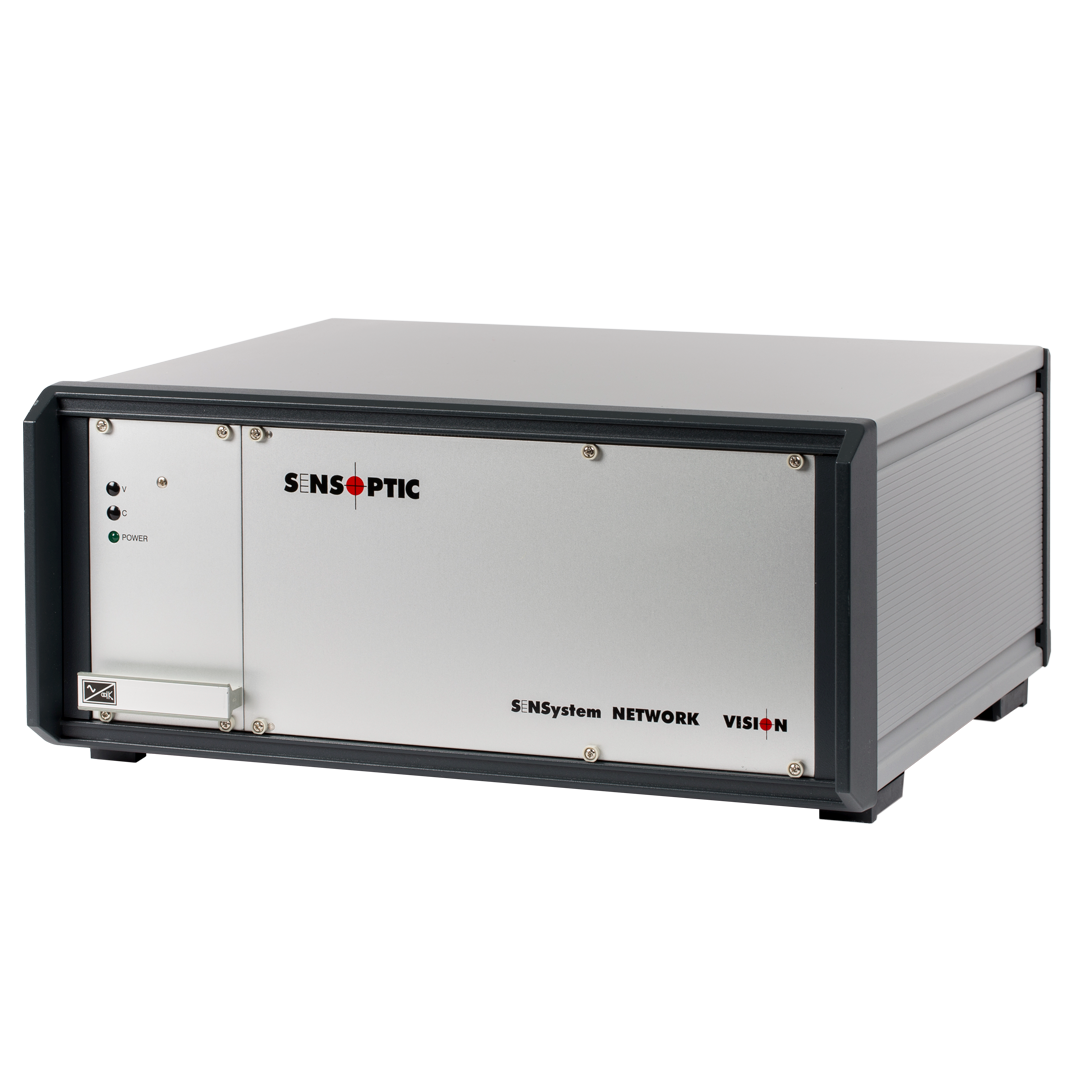

NETWORK

CONTROLLER FOR SENSOPTIC VISION SYSTEM


Range:
up to 4 single-axis or 2 dual-axis Profile Sensors

NETWORK controllers are suited to run Sensoptic Vision systems without the need of personal computers. They include ultra-fast FPGA units and real-time processors.

The NETWORK Electronic Unit is used in:
